Cerita Mengenai Piston 125z

- kalo awk nubis...sy lagi kubis di tepi enkei 3btg je...

kalo yg rm250++ tue mmg la sleeve dia cap ayam...but block yg nie dah guna sleeve yg berkualiti....(tested)

- Utk motot2 event biasanya kita akan guna blok ori 125z then kita resleeve menggunakan sleeve original seperti Rx-King...DT175...dLL...yg mane harga sleeve pon dah RM400++...sleeve yg murah = rm160++...tidak digalakkan kerana meterial yg xbgs..cepat panas..calar..dll..



[img][/img]

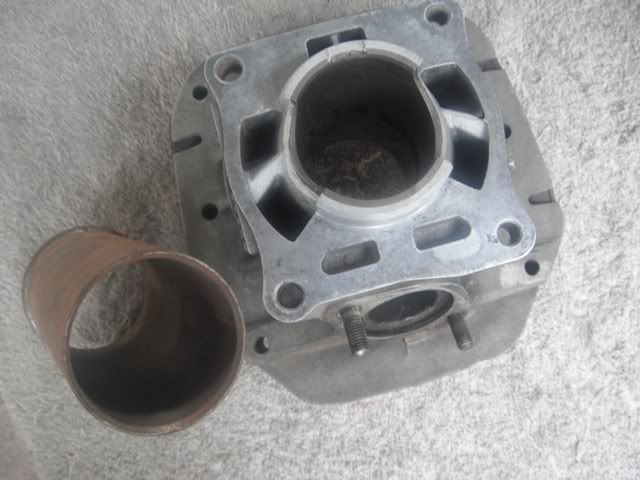

*** Blok std yg sudah bersiap sedia utk di deflorationkan...hehe ...itu lah rupanya sleeve...perlu porting + Press ke dalam blok std yg sudah dipotong @rebore ke saiz tertentu...

untungnye ade chaklek ni...xyah ak nk cari jwpn segala persoalan...
leh tumpukan kat keje lain dlm K125ZM ni hehehe
tq otai chaklek

Dino wrote:

untungnye ade chaklek ni...xyah ak nk cari jwpn segala persoalan...
leh tumpukan kat keje lain dlm K125ZM ni hehehe
tq otai chaklek

- Sekadar membantu je abam Dino...sharing is caring kan.....

chaklek wrote:

- kalo awk nubis...sy lagi kubis di tepi enkei 3btg je...

kalo yg rm250++ tue mmg la sleeve dia cap ayam...but block yg nie dah guna sleeve yg berkualiti....(tested)

- Utk motot2 event biasanya kita akan guna blok ori 125z then kita resleeve menggunakan sleeve original seperti Rx-King...DT175...dLL...yg mane harga sleeve pon dah RM400++...sleeve yg murah = rm160++...tidak digalakkan kerana meterial yg xbgs..cepat panas..calar..dll..


*** Blok std yg sudah bersiap sedia utk di deflorationkan...hehe ...itu lah rupanya sleeve...perlu porting + Press ke dalam blok std yg sudah dipotong @rebore ke saiz tertentu...

kalo sleeve original 125z plak brapa hrga anggaran??

apit wrote:

chaklek wrote:

- kalo awk nubis...sy lagi kubis di tepi enkei 3btg je...

kalo yg rm250++ tue mmg la sleeve dia cap ayam...but block yg nie dah guna sleeve yg berkualiti....(tested)

- Utk motot2 event biasanya kita akan guna blok ori 125z then kita resleeve menggunakan sleeve original seperti Rx-King...DT175...dLL...yg mane harga sleeve pon dah RM400++...sleeve yg murah = rm160++...tidak digalakkan kerana meterial yg xbgs..cepat panas..calar..dll..


*** Blok std yg sudah bersiap sedia utk di deflorationkan...hehe ...itu lah rupanya sleeve...perlu porting + Press ke dalam blok std yg sudah dipotong @rebore ke saiz tertentu...

kalo sleeve original 125z plak brapa hrga anggaran??

erm dalam <rm180...tapi normally org xkan pump sleeve std semula kat blok 125z..sebab..ssh nak macth ngn position original...walaupon material sleeve bagus...xkan sama performance ngn sleeve ori...asal blok...

Dino wrote:

Sopakk TM wrote:

satria_zr wrote:

style gak piston ni..
tp bukan lagi cepat panas ke kalo pakai single ring..wat jalan2 bese..
xsilap men sprint je rmai pakai yg single ring..
sy xtau..tlg tunjukkan

Pada pendapat aku..kalau ikut logik akal dan fikiran lagi banyak (benda @ bahan) sentuhan akan lagi cepat panas....

-"Kami budak baru belajar ,Kalau salah tolong tunjukkan"-

ak stuju ngn sopa...more surface attach to another surface will result more friction and more
heat will produce...itu konsep fizik yg ak tau...ape teori bro satria ckp single piston ring
cpt panas?? ko kn student engineering...kasi teori sket

aloo..nk teori gak ke din..cam da habis bincang je pasal ni..hehe..
aku xtau a din..kawan2 da bg teori msaing2 ni..xpenah pakai xtau a cmne din..hehe

chaklek wrote:

apit wrote:

chaklek wrote:

- kalo awk nubis...sy lagi kubis di tepi enkei 3btg je...

kalo yg rm250++ tue mmg la sleeve dia cap ayam...but block yg nie dah guna sleeve yg berkualiti....(tested)

- Utk motot2 event biasanya kita akan guna blok ori 125z then kita resleeve menggunakan sleeve original seperti Rx-King...DT175...dLL...yg mane harga sleeve pon dah RM400++...sleeve yg murah = rm160++...tidak digalakkan kerana meterial yg xbgs..cepat panas..calar..dll..


*** Blok std yg sudah bersiap sedia utk di deflorationkan...hehe ...itu lah rupanya sleeve...perlu porting + Press ke dalam blok std yg sudah dipotong @rebore ke saiz tertentu...

kalo sleeve original 125z plak brapa hrga anggaran??

erm dalam <rm180...tapi normally org xkan pump sleeve std semula kat blok 125z..sebab..ssh nak macth ngn position original...walaupon material sleeve bagus...xkan sama performance ngn sleeve ori...asal blok...

tq bro chaklek....
1 lg,agak2 sleeve dt 125 leh masuk x??? xmau la gila kuasa sgt.....hhahahaha

...nie apit yg dah beli buku panduan tue eh?? hahha... ...sleeve DT125 0.0 =Rxz = 56mm...masalahnye mane nak cari sleeve DT125 nie....lagi satu xdapat bore up byk sbb sleeve std tupai pon dah boleh masuk piston 1.75 DT125 kan...jadi rugi je nak masuk sleeve or liner comel2 nie...hahaa

meterial ape yg baik utk sleeve nie? hehe

su wrote:

meterial ape yg baik utk sleeve nie? hehe

wow nak custom sendiri ka?? ...normally guna sleeve/liner ori motot2 lain yg bore lebih besar mcm RX-king...DT175..RD250...dll..

uish...sy mne smpi tahap tu lg..huhu..just nk tau jer...untuk dimasa yg mendatang nnti tau le ape yg ptut dilakukan...
heheheh

su wrote:

uish...sy mne smpi tahap tu lg..huhu..just nk tau jer...untuk dimasa yg mendatang nnti tau le ape yg ptut dilakukan...
heheheh

-hehe...complicated bila nak main custom2 nie...cukup la kita tahu lathe n boring machine dulu.... ...dah advance baru main CNC

chaklek wrote:

...nie apit yg dah beli buku panduan tue eh?? hahha... ...sleeve DT125 0.0 =Rxz = 56mm...masalahnye mane nak cari sleeve DT125 nie....lagi satu xdapat bore up byk sbb sleeve std tupai pon dah boleh masuk piston 1.75 DT125 kan...jadi rugi je nak masuk sleeve or liner comel2 nie...hahaa

ha aku la tu....hehe....saja nk tmbh ilmu sikit....actually most yg dlm buku tu aku dah taw,juz bab porting je xbrapa master sgt...
kalo sleeve beli mmg xde lubang2 transfer n ezos eh....

apit wrote:

chaklek wrote:

...nie apit yg dah beli buku panduan tue eh?? hahha... ...sleeve DT125 0.0 =Rxz = 56mm...masalahnye mane nak cari sleeve DT125 nie....lagi satu xdapat bore up byk sbb sleeve std tupai pon dah boleh masuk piston 1.75 DT125 kan...jadi rugi je nak masuk sleeve or liner comel2 nie...hahaa

ha aku la tu....hehe....saja nk tmbh ilmu sikit....actually most yg dlm buku tu aku dah taw,juz bab porting je xbrapa master sgt...
kalo sleeve beli mmg xde lubang2 transfer n ezos eh....

- kira bukan newbie la nie ..aper2 leh PM for technical advise...
- ade sleeve dah siap lubang port n ade yg xde so...kena modify sendiri...n harga sleeve pon mcm2....ade murah n mahal..

selain drpd piston jammed, mcm mane kite nk tau samada blok tu dh smpi mse kne rebore ATAU tukar ring ATAU tkar piston. Motor kegunaan utk daily riding, kadang speed, kadang slow. Depends on traffic. Last rebore x silap 2006/07 gitu. he.he.he

bunyi macam fun fair,loss compression

AdyFayeR wrote:

selain drpd piston jammed, mcm mane kite nk tau samada blok tu dh smpi mse kne rebore ATAU tukar ring ATAU tkar piston. Motor kegunaan utk daily riding, kadang speed, kadang slow. Depends on traffic. Last rebore x silap 2006/07 gitu. he.he.he

tukar ring = bila rase2 mto dah drop + Bunyi bising
tukar piston + ring = bila duit ade + moto drop + bunyi bising
rebore + tikar piston + ring = bila ade duit lebih + Nak Fly

assalam.. nk tanye abam2 kat dlm nie.. moto saye power lost.. bwk kat highway slalu leh je dpt 170 - 180 senang2.. tp smlm dpt 110 je.. begegar terok enjin tu.. rase dekat kaki2.. power mcm xde je.. pastu bunyi ring terok.. agak2 sebab pe ea?
kalu rebore blok, tuka piston, tuka piston ring ngn clutch plate suma okay x?

chaklek wrote:

AdyFayeR wrote:

selain drpd piston jammed, mcm mane kite nk tau samada blok tu dh smpi mse kne rebore ATAU tukar ring ATAU tkar piston. Motor kegunaan utk daily riding, kadang speed, kadang slow. Depends on traffic. Last rebore x silap 2006/07 gitu. he.he.he

tukar ring = bila rase2 mto dah drop + Bunyi bising
tukar piston + ring = bila duit ade + moto drop + bunyi bising
rebore + tikar piston + ring = bila ade duit lebih + Nak Fly

ingt maw antar rebore la, korek 0.75 plak, rekemen sket piston brand ape nk sarung & skali ng harga market skarang.

- Piston + ring yg nak digunakan pon agak subjektif kepada harga...cthnya harga piston sahaja 0.0 ART kat Hong leong yamaha sg buloh Rm 340... ...mmg meninggal la nak beli....

- jadi for intermediate ..sy cadangkan Piston Brand - Top, CDCO, TKRJ..dll harga sekitar RM20++ - RM40
- piston ring brand = TP, RiK,NpR, APR. harga Rm 20++ - RM40..

shrinklefritz wrote:

assalam.. nk tanye abam2 kat dlm nie.. moto saye power lost.. bwk kat highway slalu leh je dpt 170 - 180 senang2.. tp smlm dpt 110 je.. begegar terok enjin tu.. rase dekat kaki2.. power mcm xde je.. pastu bunyi ring terok.. agak2 sebab pe ea?
kalu rebore blok, tuka piston, tuka piston ring ngn clutch plate suma okay x?

- hehe...rasenya warga MBCian kan??
- sebelom buat ape2 keputusan..better diagnost dulu...check satu2...

modi ring cmne pula ye? ape klebihan n kekurangan nye?

shrinklefritz wrote:

assalam.. nk tanye abam2 kat dlm nie.. moto saye power lost.. bwk kat highway slalu leh je dpt 170 - 180 senang2.. tp smlm dpt 110 je.. begegar terok enjin tu.. rase dekat kaki2.. power mcm xde je.. pastu bunyi ring terok.. agak2 sebab pe ea?
kalu rebore blok, tuka piston, tuka piston ring ngn clutch plate suma okay x?

moto aku sebijik jadi mcm tu.begegar terok enjin tu.. rase dekat kaki2....tp power moto aku ada lagi.. pomen aku cakap kalaw gegar enjin tu mungkin balancer... bearing kat balancer tu maybe kena tukar laaa...huhuhuh aku pon tak tertuka2 lagi neh... nak kena overhaul lak... adesss masa takde...

Dino wrote:

modi ring cmne pula ye? ape klebihan n kekurangan nye?

- takat nie xpenah lagi jumpa ring yg di modify...selain di lay menjadi nipis...(kes emergency)...saiz 0.25 xde..diaowg lay 0.50 kasi masuk ke 0.25..tadi....abam dino share la sket..

chaklek wrote:

...nie apit yg dah beli buku panduan tue eh?? hahha... ...sleeve DT125 0.0 =Rxz = 56mm...masalahnye mane nak cari sleeve DT125 nie....lagi satu xdapat bore up byk sbb sleeve std tupai pon dah boleh masuk piston 1.75 DT125 kan...jadi rugi je nak masuk sleeve or liner comel2 nie...hahaa

kalu sumbat sleeve yang besa2 ni kan chaklek, x kacu ke 4 lubang tepi tuh?
maksud nye cmne nk counter besar 4 lubang transfer port tuh sebab bler da masuk sleeve besar2, transfer port da jadi makin kecik kn?
